Maglock

All diagrams are suggestions. For detailed instructions, please consult the vendor’s hardware manuals and guides. Additionally, it is the installation partner’s responsibility to comply with all life safety codes.

Components

• Axis Communications Controller
• Controller Enclosure
• Credentials
• Relay Board
• Door Release
• REX
• Power Supply
• Card Reader

Considerations

• The relay board includes a fire alarm input connection.
• Follow local AHJ standards for push-button requirements.
• Each door requires one Cat6 cable and one 18-gauge (18/4 AWG) cable.

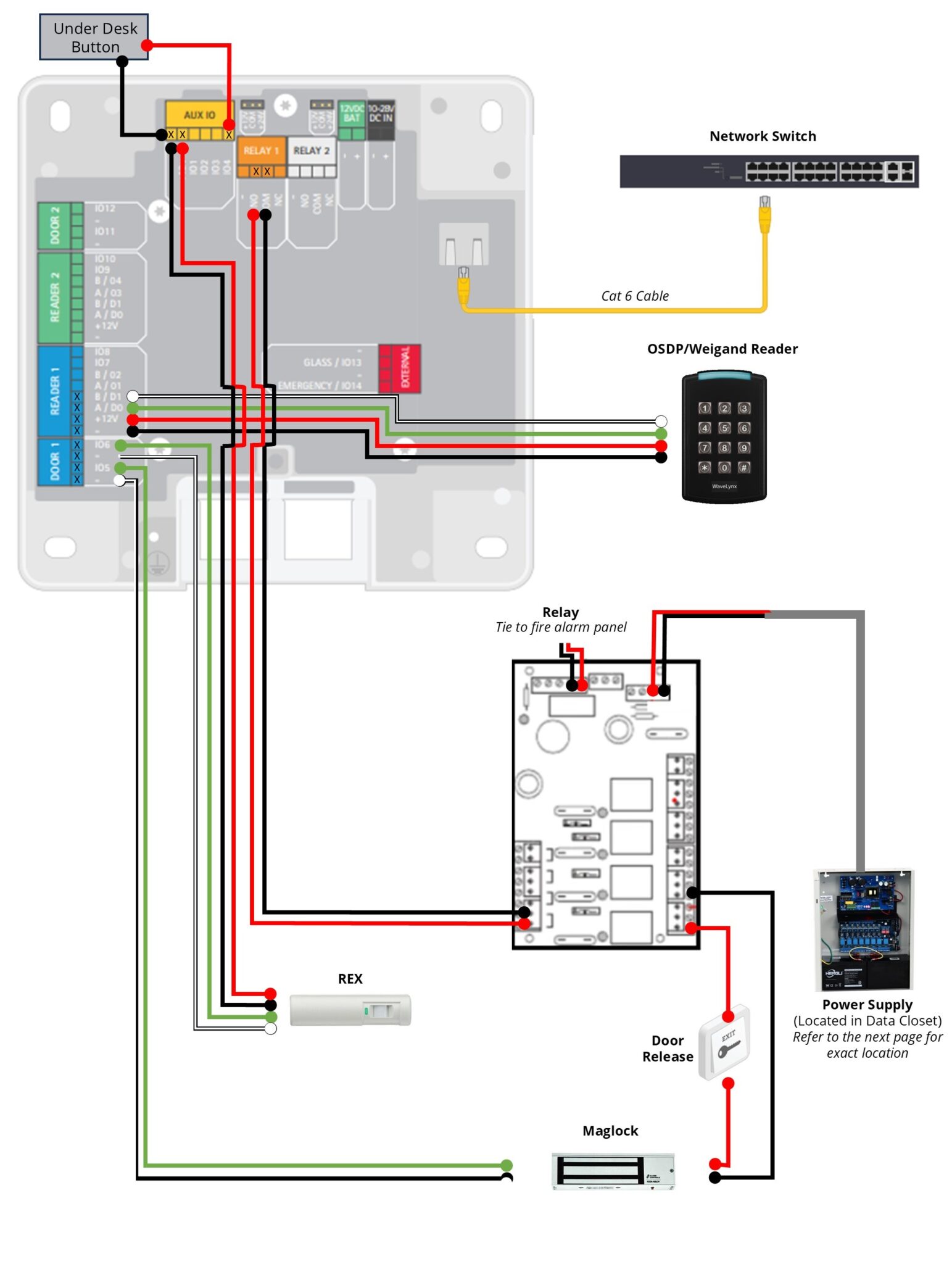

Diagram

Wiring

• Contact the device manufacturer for wire specifics.

Power Supply
