Door with Locks (Electrified Rim Exits)

All diagrams are suggestions. For detailed instructions, please consult the vendor’s hardware manuals and guides. Additionally, it is the installation partner’s responsibility to comply with all life safety codes.

Components

  • Axis Communications Controller
  • Controller Enclosure
  • Credentials
  • Relay Board
  • Door Contact (required for Y6OS to monitor, display, and notify on barrier status)
  • Power Supply
  • Card Reader

Considerations

  • Power consumption limited to 2 amps per door.
  • Requires 802.3bt (60W PoE Class).
  • Each door requires one Cat6 cable and one 18-gauge (18/4 AWG) cable.

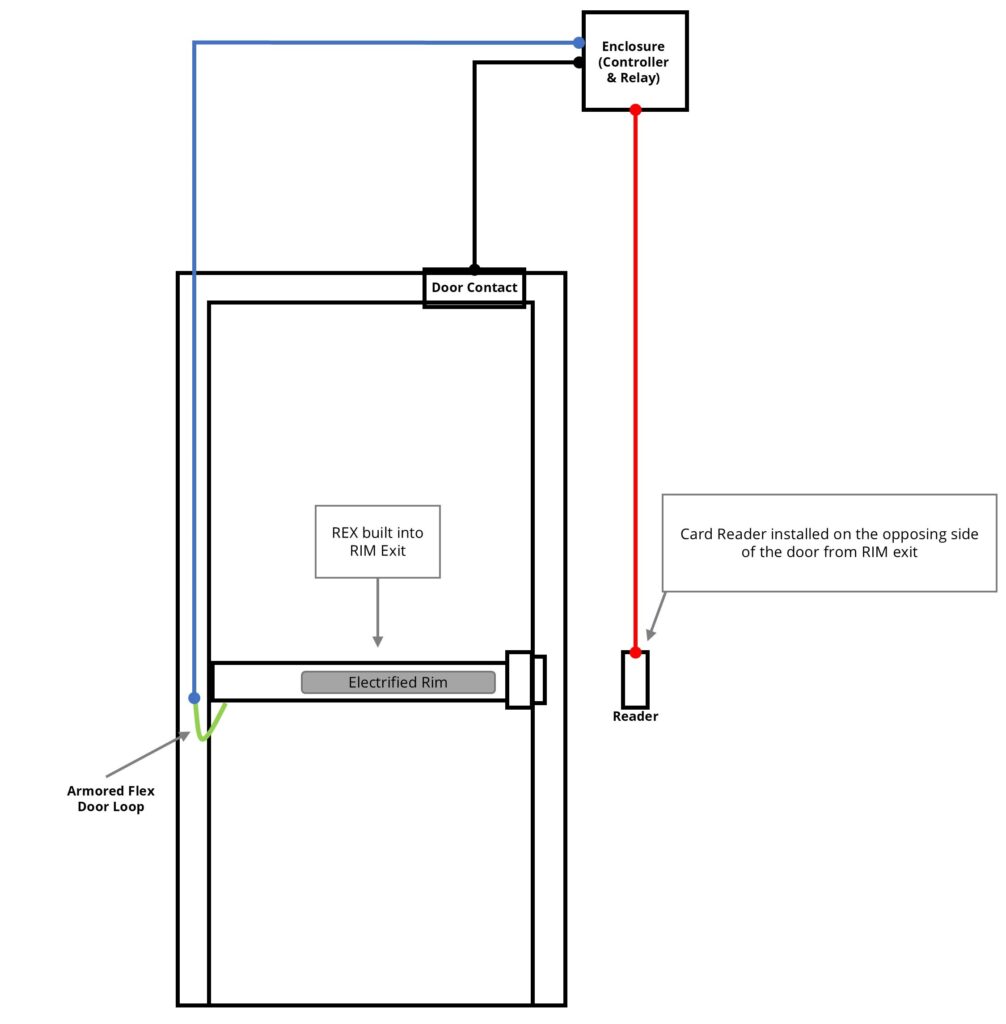

Diagram

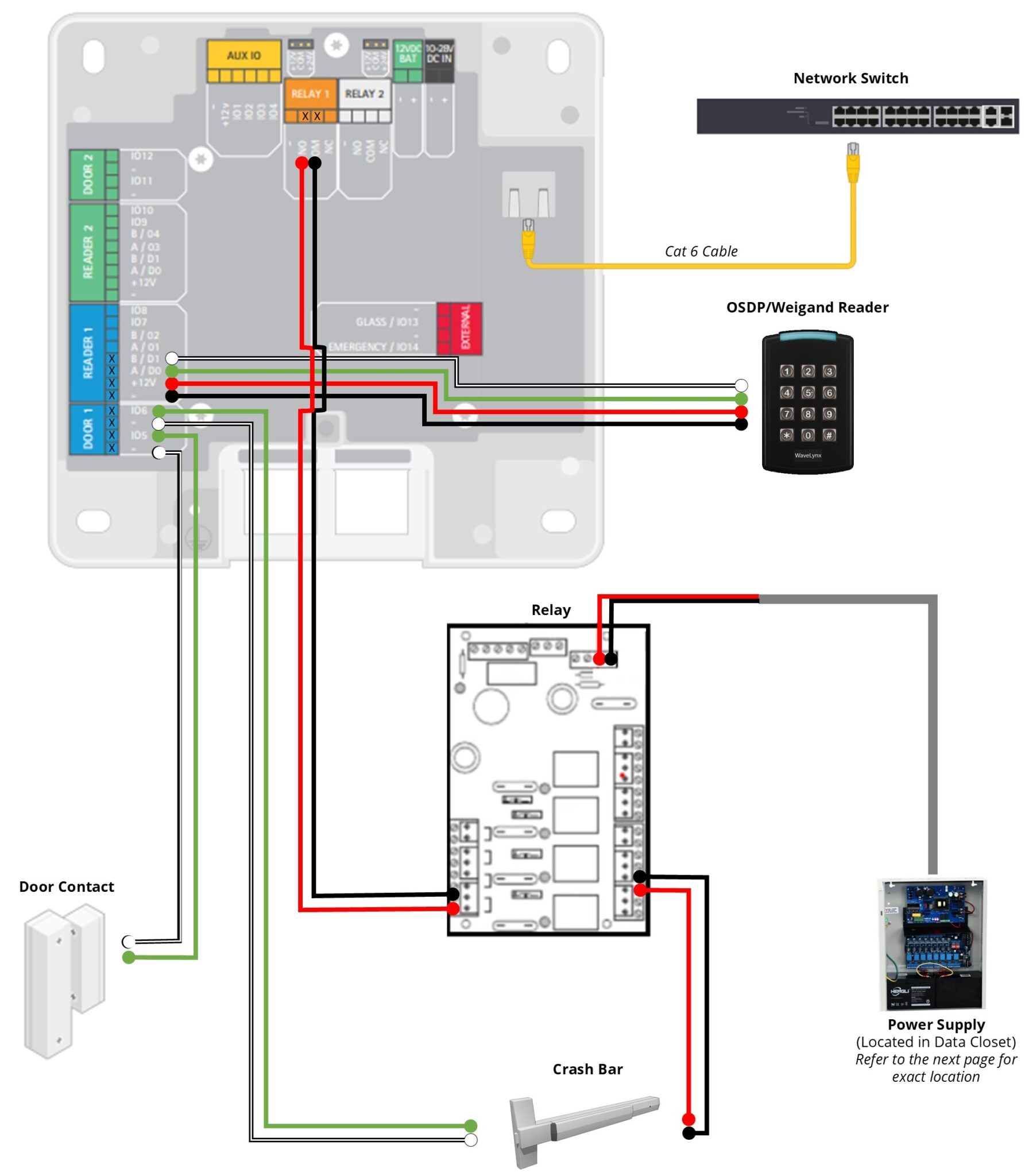

Wiring

  • Contact the device manufacturer for wire specifics.

Power Supply
